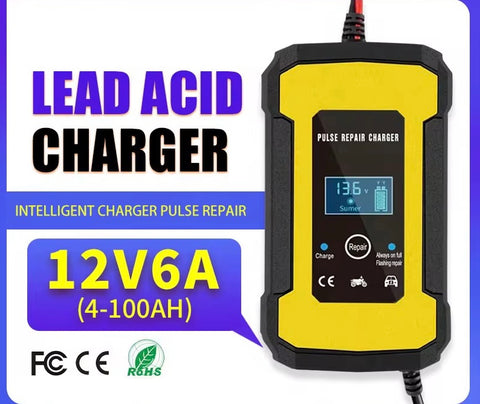

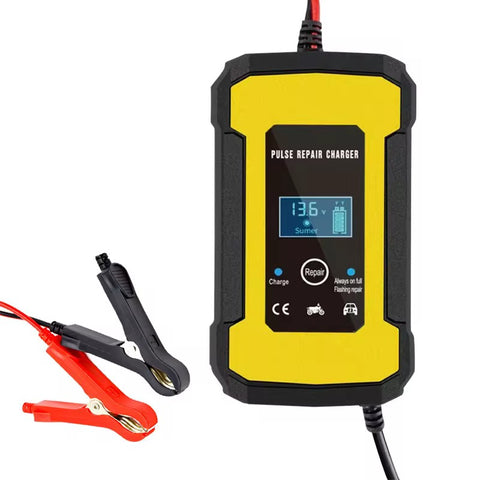

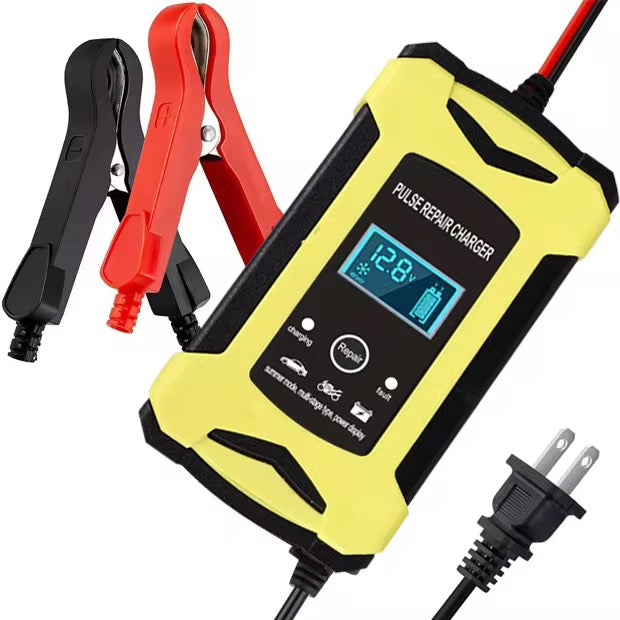

12V 6 Amp Automotive Smart Battery Charger Maintainer for Car, Motorcycle, RV, SUV, Lawn Mower, Boat, RV, SUV, ATV and More

12v Intelligent Pulse Repair Battery Charger

Repairs Dead Car Batteries Easily

Specifications

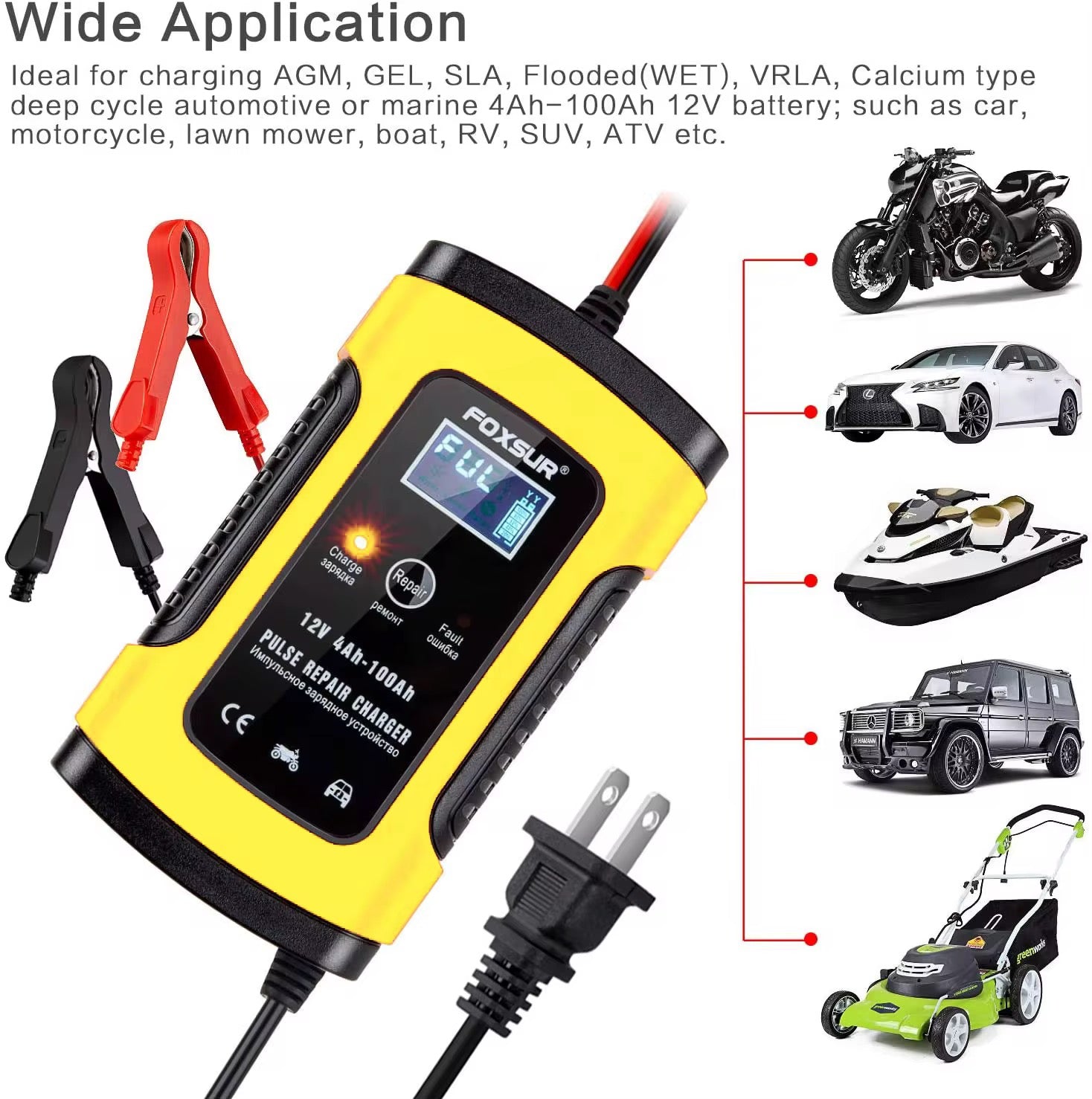

Battery Type: Suitable for all type of 12V AGM, GEL, Flooded(Wet), Calcium type deep cycle, VRLA maintenance free lead acid batteries
Battery Capacity: 4Ah - 100Ah
Charge Current: 5 Amp
Input Voltage: 100-240VAC 50/60Hz 75W
Input Current: 0.5A(RMS)@230VAC

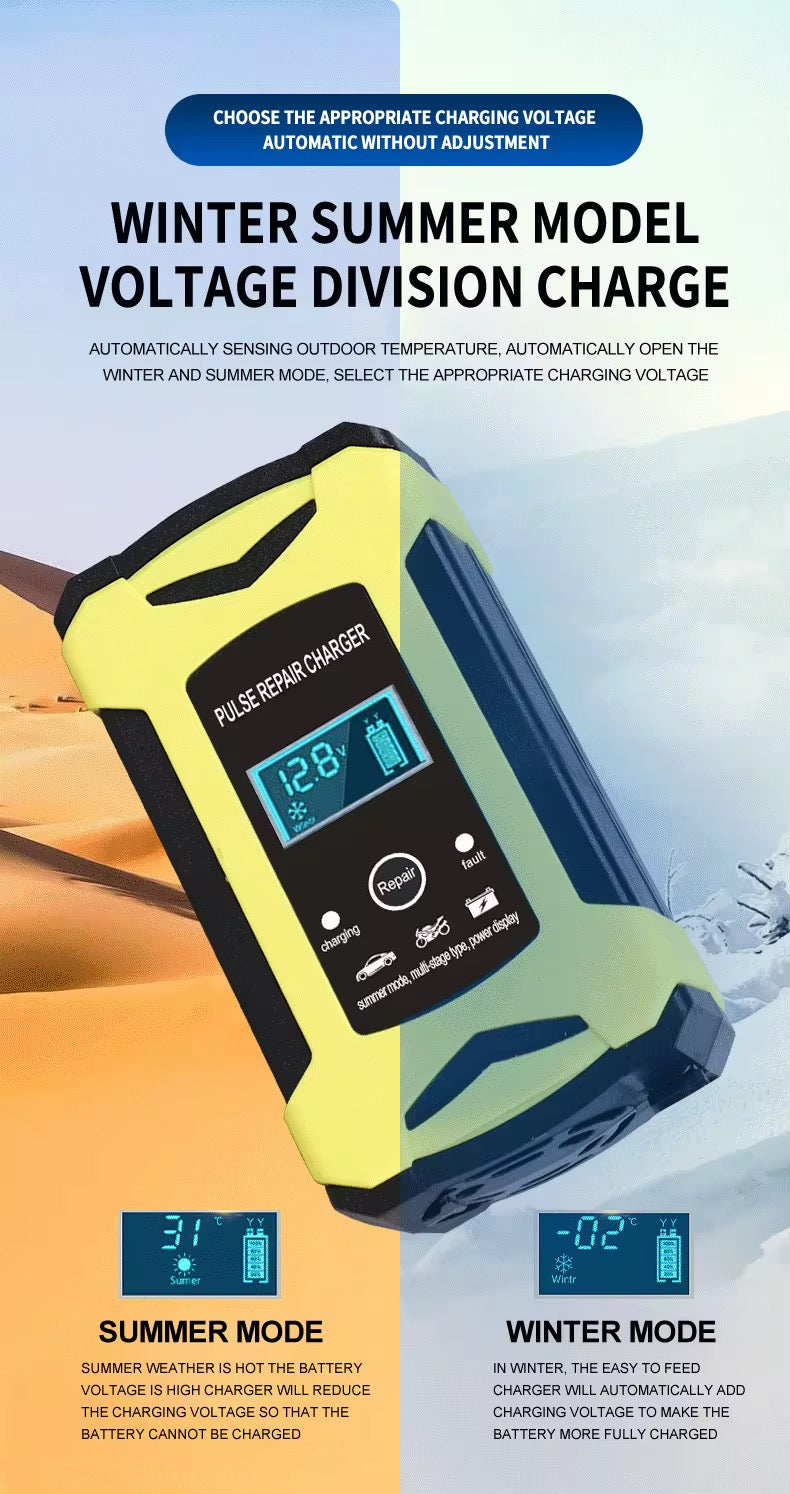

Charge Voltage: Summer Mode: 14.4V; Normal Mode: 14.7V; Winter Mode: 15.5V
Operate Temperature: -20℃ to +45℃(-4℉ to 113℉)

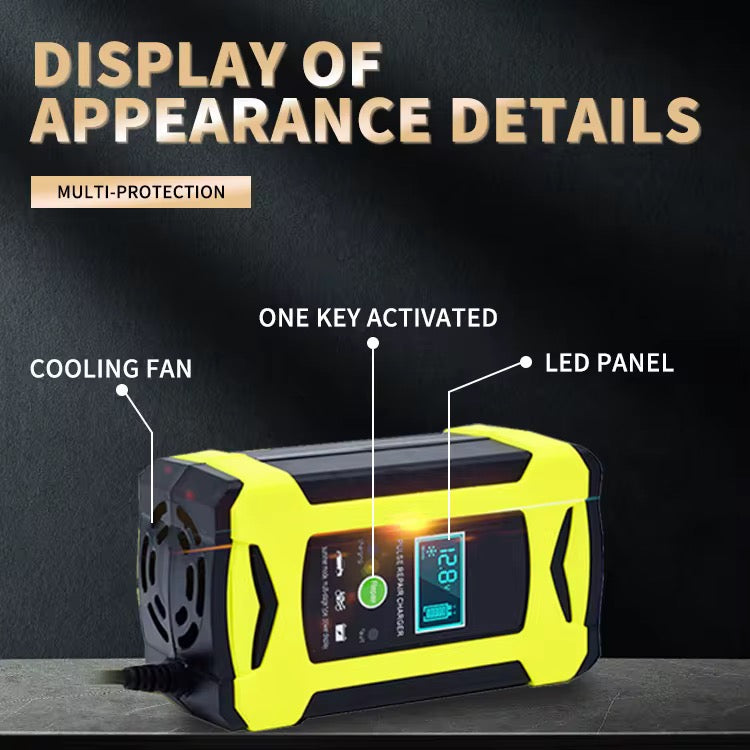

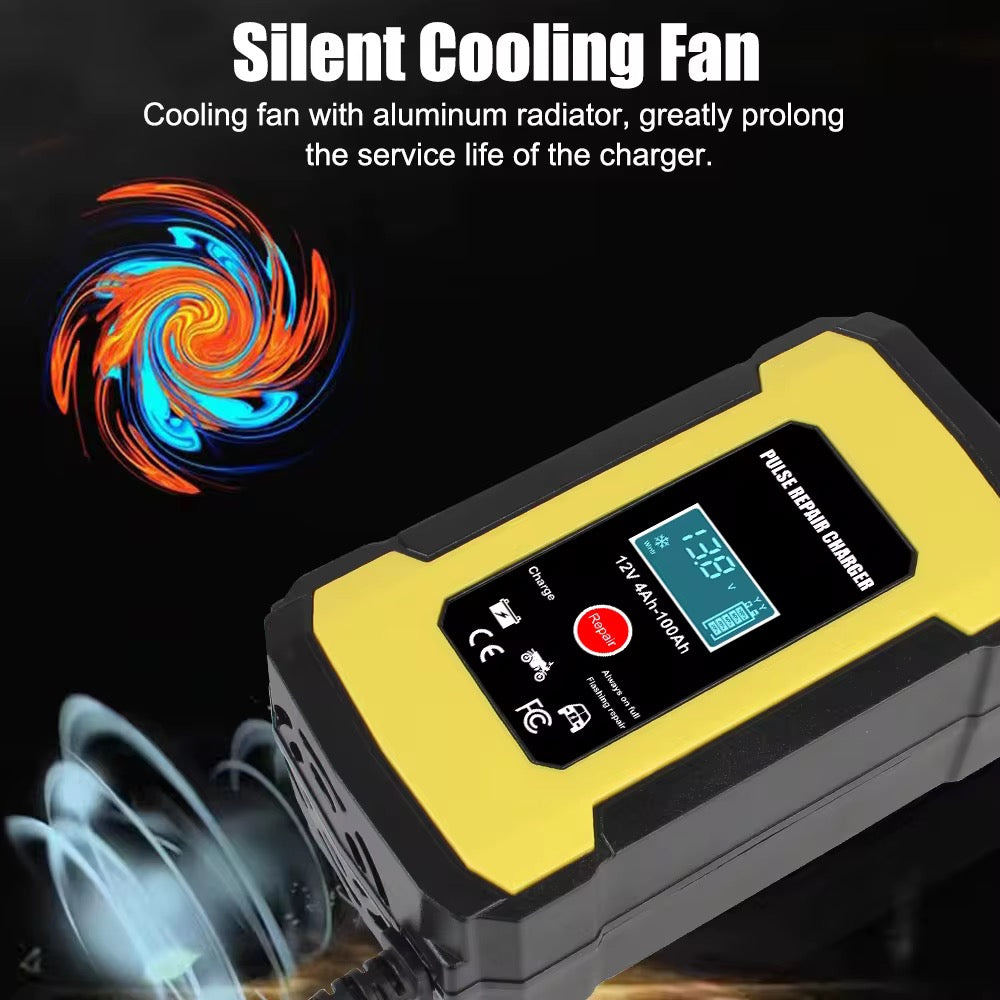

Cooling: Fan

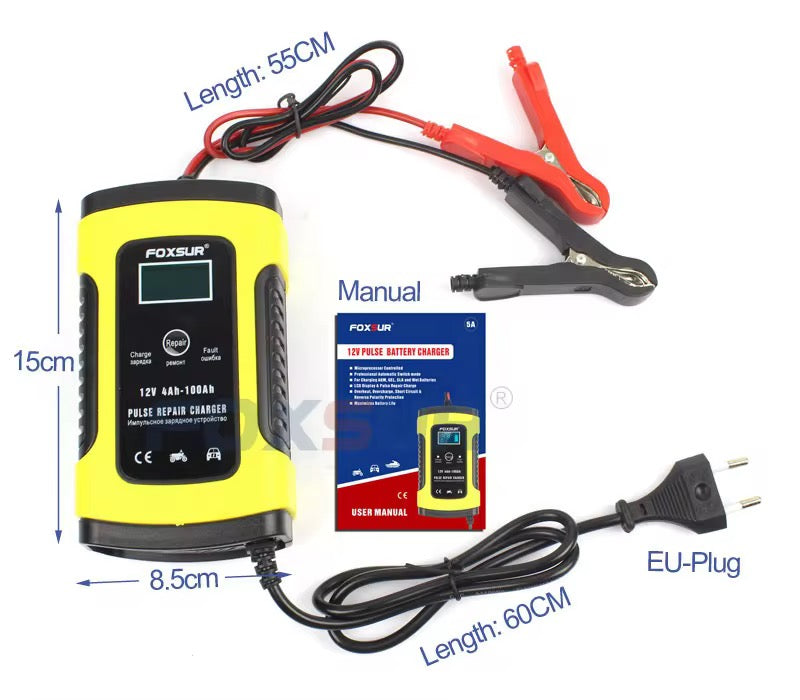

Size: 150*85*60mm(0.6*0.34*0.24in)
Weight: Approx. 380g(0.84lb)


How to Use
1. Please reconfirm your battery parameters are compatible to the charger (at the back of the charger).
2. Carefully connect the red clamp to the positive pole (+), and the black clamp to the negative pole (﹣).
3. Battery voltage, charge current and inside temperature will be showed on the LCD display. (Temperature is for reference only, allowed tolerance).
4. Wrong battery connection warning： “EI-I-” will displayed on screen , the indicating lamp will flash.
5. Plug AC power source with the charger, charger will start to work. (Charge-lamp will start to flash in red).

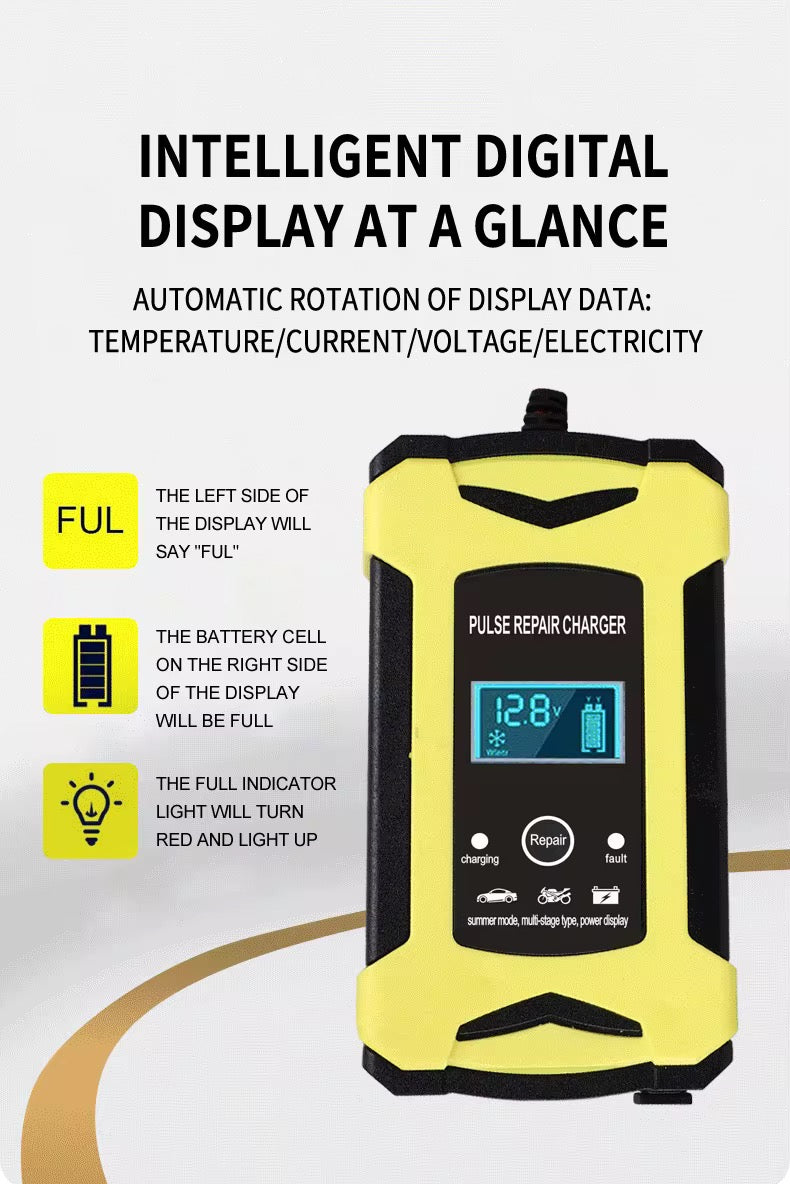

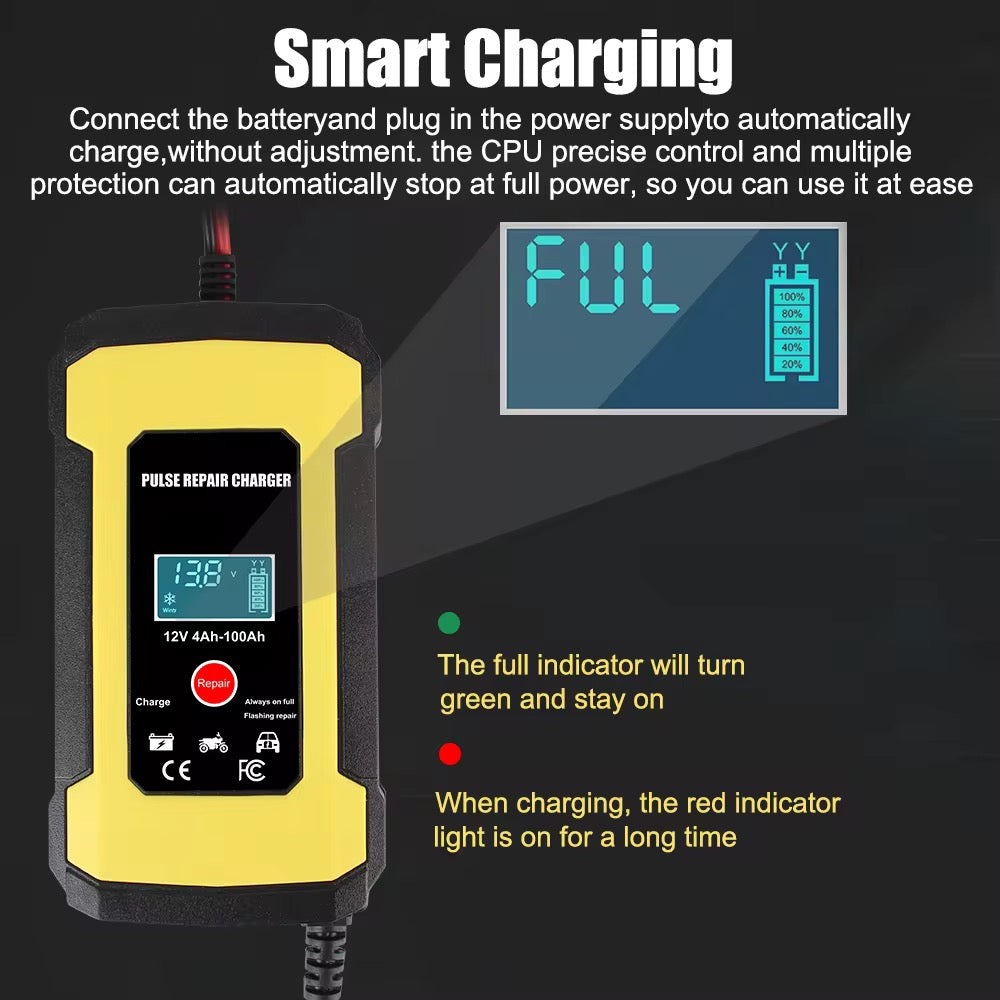

6. Once the battery is fully charged, there will be letters “FUL” on screen, meanwhile, the charge indicating lamp will keep on.
Highly recommend keep the charged status for 1-2 hours.
7. Charging completed, remove the charger.

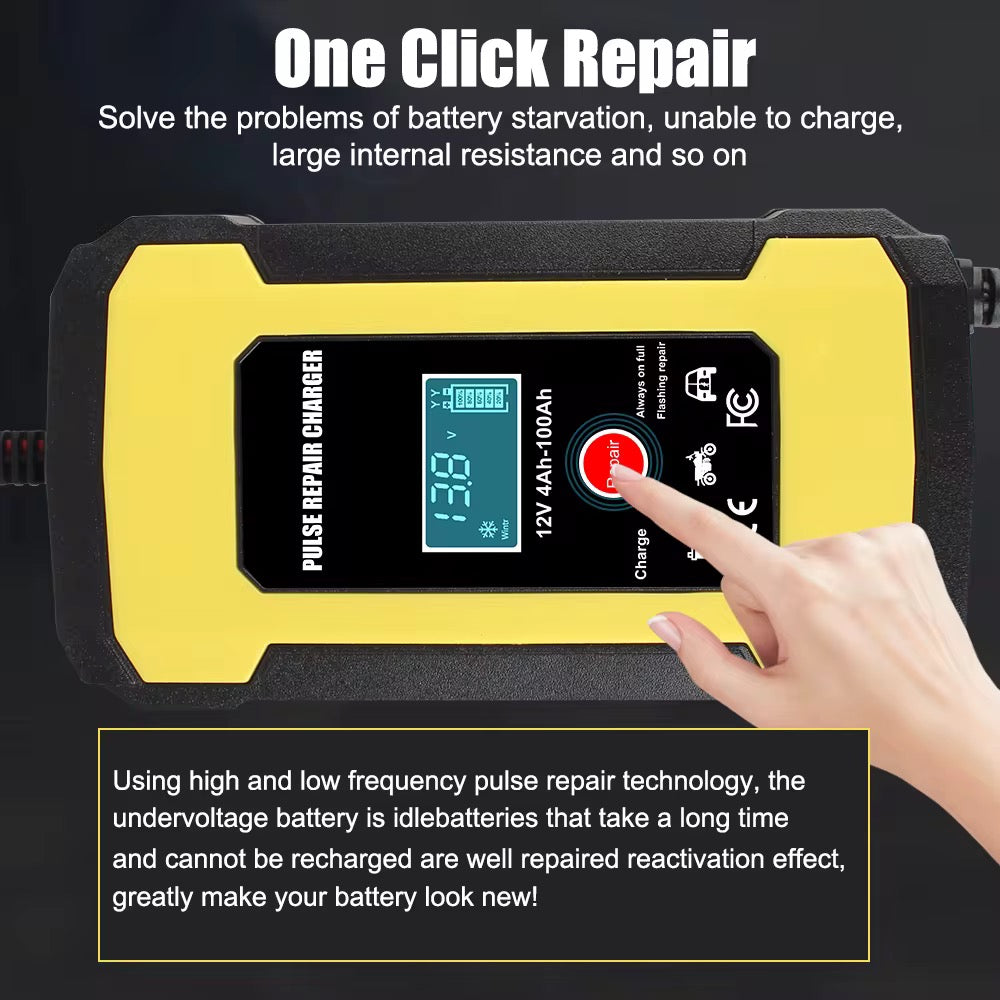

Remark: for 4Ah-15Ah battery, we suggest use “Repair” mode, because the battery size is too small, use pulse charge is very good for small size battery.

Package Includes
1 x Car Battery Charger
1 x User Manual
