12V 22Ah

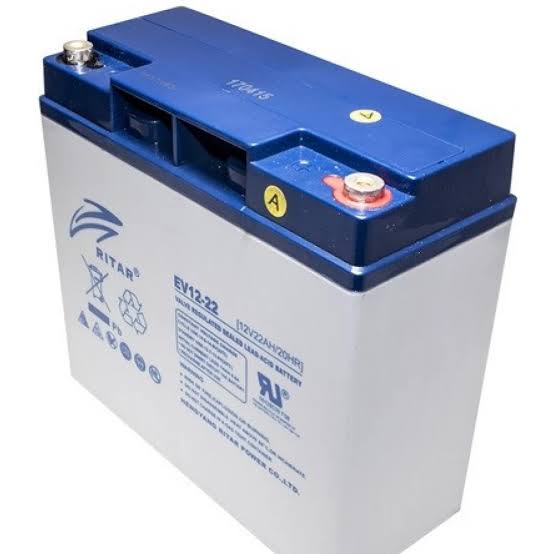

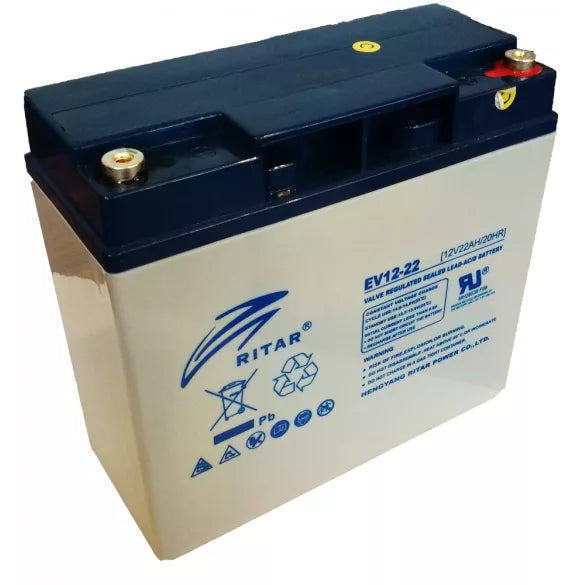

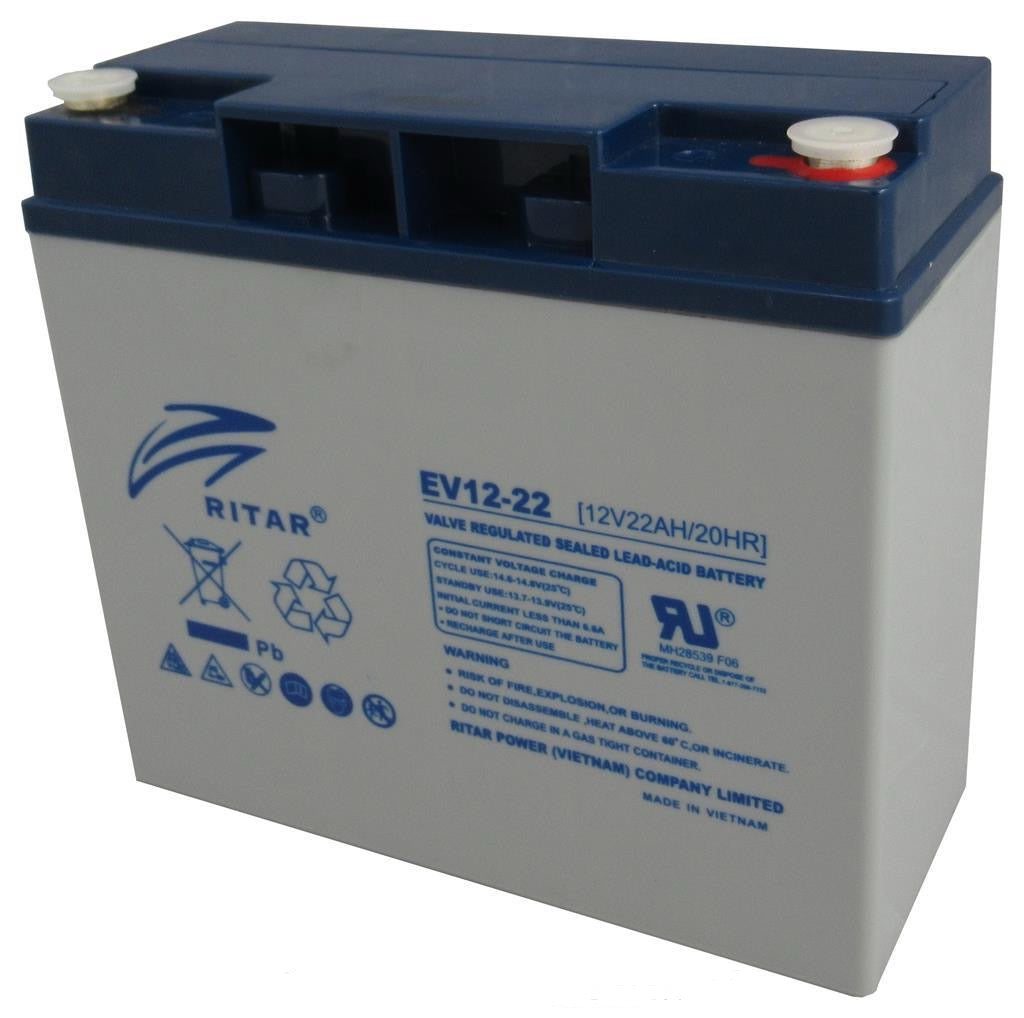

Cyclic AGM DC battery Ritar 22Ah for deep discharge.

The Ritar EV12 22 battery is intended especially for use in electric scooters, electric wheelchair and wherever a durable battery with a long service life is needed.

The battery is maintenance-free and can also be installed on its side.

 Manufacturer: Ritar Power
Model: EV12 22
Technology: AGM
Capacity (C20): 22Ah
Voltage: 12V
Maximum discharge current (5 seconds): 264A
Number of cycles: 1,200 (DoD=50%)
Maximum charge current: 6.6A
Main charge: 14.6V to 14.8V
Maintenance charge: 13.8V
Terminal: F13
Weight: 6.2 kg
Dimensions: 181 x 77 x 167 mm

DATA-SHEET LINK HERE

FEATURES&BENEFITS

• True deep cycle AGM-GEL technology-GREEN SOLUTION.
• Over 99.99% virgin lead for grid plate.
• Electrolyte + Gel for longer cycle life.
• Heavy duty grid/paste design for deep cycle application.
• Maintenance free, non-spillable, valve-regulated.
• Double separator configuration :long cycle life &High energy density and super anti-vibration design.
• Low self-discharge for longer shelf life.

MADE IN VIETNAM
